Products

Product Description:

• Scaffold Tower - Wide Version -  with Internal Stairway,
• Scaffold Platform Size: 1350mm  X 1800mm
• Load Capacity: 200 Kg/sq mtr
• Platform Height: 6.3 m
• Total Scaffold Height avg.: 7.3 m
• Guard Rail Height: 1 m
• Max Working Height / Reach: 8.3 m

Special Features:

1. Special Stabilizer in 6 Mtr and above Scaffold of 3.4 Mtr Length.
2. Special Alloy of 6105 T6 Temper.
3. Snap Lock and other Clamp ? Pressure Die Castings and Gravity Castings for better Strength.
4. Special ladder step with size of 100mm depth and width of ladder will be 440mm (outside)
5. Toe Guard set on top Platform.
6. Anti-skid 8" Swivel Wheels with Break & Screw Jack Mechanism (@300 mm Height Adjustment) is part of Standard Supply.

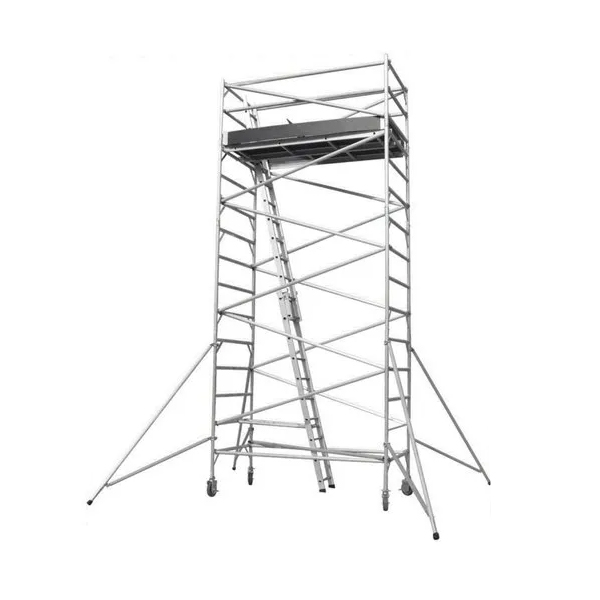

Double width Aluminium Scaffolding Tower with internal ladder

Platform Size 1350 mm X 1800 mm

Load Capacity = 200 Kg/m2

• H Frames 2 mtr - 4
• H Frames 2 mtr with Z clamp - 1
• Gate H Frames 2 mtr - 1
• Guard Rail Frame - 2
• Diagonal Brace - 6
• Horizantal Brace - 6
• Special Straight Bracess  - 2
• Platforms - Fix - 3
• Platforms - Openable - 1
• Ladders Length - 2 mtr - 3
• Ladder support - Straight 2 MTR - 2
• Ladder support - L type - 1
• Stabilizer -Regular - 3.4 mtr - 4
• Toe Board - 4
• Screw Jack and Wheel - 4
