Product Description:

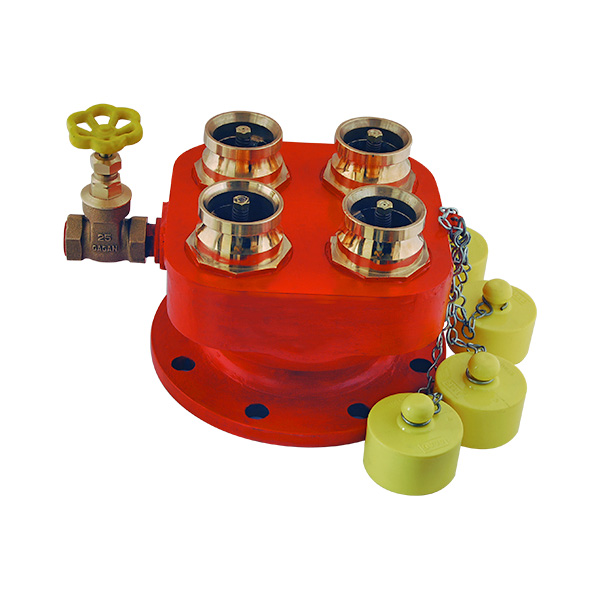

AAAG Fire Brigade Inlet (Pumping in Breech), made of Gunmetal, having 4 Nos. 63 mm size Male Instantaneous inlets (with NRV), and 150 mm size flanged outlet, suitable for connection to Dry Riser piping. Fire Brigade inlet body shall be provided with drain valve for draining water after operation.

General Data:

• Model    4?Way FB Inlet
• Inlet 4 Nos Male Instantaneous Adaptor (63 mm) with NRV
• Outlet 150 mm NB Flanged (IS: 1538 / ANSI B 16.5 150#)
• Material of Construction Gunmetal
• Reference   SBJ Drawing (See below)

Material

• Body/Flange Gunmetal, IS: 318 LTB?2
• Male Adaptor Gunmetal, IS: 318 LTB?2
• Drain Valve Gunmetal, IS: 318 LTB?2
• Inlet Caps/Seat Washer Rubber, IS:937 Type A

Testing & QC

• Dimensional check See drawing below
• Hydrostatic Pressure Test 21 Kgf/cm2 for 2.5 minutes
• Documentation Internal inspection report, supplier’s certificates, approved  laboratory test certificates

Technical Data:

• Working Pressure   7 Kgf/cm2
• Weight (approx.) 19.0 Kgs. (approx)

Finish:

• Body   Painted ? Fire Red Color
• Male Adaptor Polished
