Product Description :

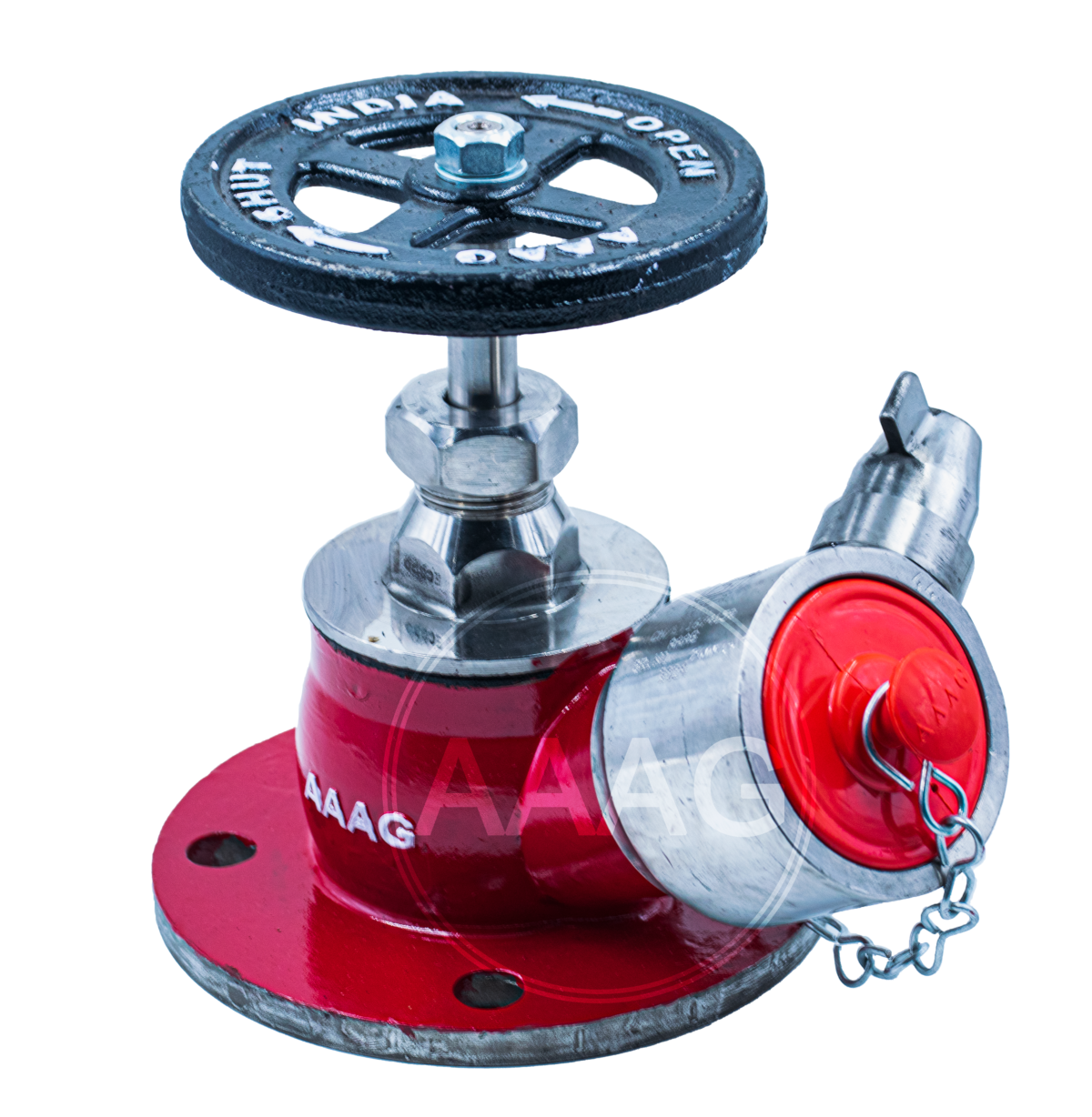

Hydrant Valve – Type A, ISI marked (IS:5290), made of Stainless Steel (SS304), having 75 mm flanged inlet, and 63 mm Female Instantaneous outlet, provided with C.I. handwheel for operation, and PVC blank cap with chain. Body duly painted with 2 coats of superior quality paint. H.P. tested to 21 kgf/cm2 (body) and 14 kgf/cm2 (seat). Flow 900 lpm (min) at 7 kgf/cm2

General Data

• Make AAAG
• Size 63 mm
• Inlet   80mm/75mm NB, IS: 1538 / ANSI B 16.5 150 #
• Outlet   63mm Female Instantaneous Adaptor
• Reference Standard   IS: 5290 TYPE A

Material of Construction

• Body, Bonnets, Female outlet and parts IS: 3444 Gr.I (SS304)
• Spindle IS: 3444 Gr.I (SS304)
• Spring Stainless Steel Wire IS: 6258
• Hand Wheel C.I. IS: 210 FG 200
• Washer Rubber IS: 937 Type A

Testing & QC:

• Dimensional check Dimensions as per IS:5290 Type A (See drawing below)
• Water Tightness Seat Test 14 kgf/cm2 for 2.5 minutes.
• Hydrostatic Pressure Test 21 kgf/cm2 for 2.5 minutes.
• Performance requirements Flow test : 900 lpm (min) at 7 kg/cm2 pressure
• Documentation Internal inspection report, supplier’s certificates, approved laboratory test certificates

Technical Data

• Working pressure range upto 10 Kg/cm2
• Weight (approx.)   8.0 Kgs.


Finishing

• Body Painted - Fire Red Color as per IS: 5 Shade No. 536
• Wheel Painted - Black Paint Parts Polished

Approval

• Approvals ISI marked (Licence No. 1674159)
• Marking on Hydrant valve BHOJEBROS / Size/ Year of Manufacture/ ISI No/ Sl. No
