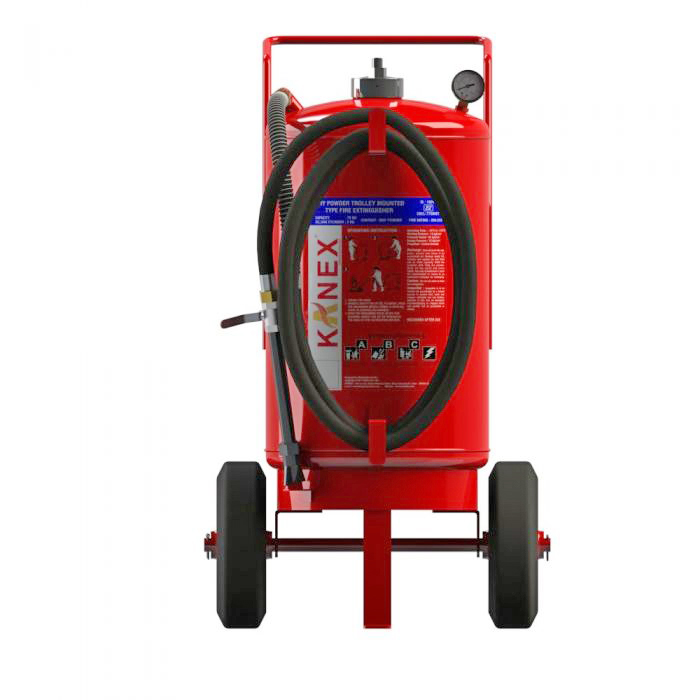

75 kg ABC Fire Extinguisher (MAP 90 Based Mobile)

Code : KFDRQ-75-90%

Key Features:

  • Conformity to IS 16018:2012
  • BIS Approved and ISI marked
  • Hydraulically tested as per standard and passed through anti-corrosive treatment
  • High quality Pure Polyester (PP) powder coating (UV Resistant)
  • Brass caps, drain plugs, ball valve conforms to IS:319
  • Aluminum alloy nozzle conforms to IS:617
  • Controllable discharge
  • Easy to maintain, recharge & service
  • PVC braided discharge hose
  • MAP Mono Ammonium Phosphate 90% dry chemical powder confronts to IS 14609 capable of fighting against class A, B, C & Electrically started fires.

Techniclal Specifications:

MODEL KFDRQ-75-90%
Capacity 75 kg
Fire Rating 20A:233B
Diameter (Approx.) 400 ±10 mm
Average Range of throw 8 m
Operating Temperature -30 °C to +55 °C
Expelling Agent Co2
Empty Weight (Approx.) 75 kg
Approvals BIS
Design Hose & Nozzle
Height (Approx.) 1030 mm
Average Discharge Time 51 Sec
Average Discharge 93.50%
Service/Max. service/Test Pressure 15 / 18 / 35 bar
Full Weight (Approx.) 150 kg
Shipping Weight (Approx.) 152.5 kg
