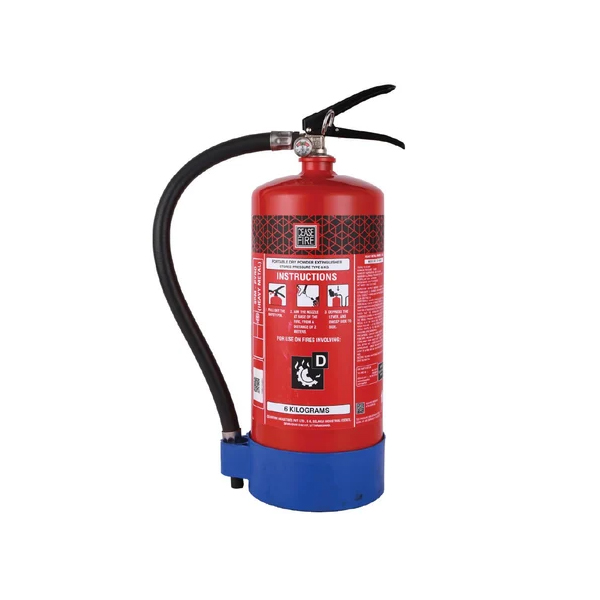

SPM - PYRO Metal Fire Extinguishers

Code : Ceasefire CF-000041

Product Overview

Using the wrong extinguishing agent on a Class D fire may cause more damage than the fire itself. Other than the extreme threat that all metal fires pose, one common characteristic is that all of them react violently, often exploding, when they come in contact with water.

So what is the solution to a raging metal fire? You go for SPM-PYRO!

Metals such as Plutonium, Titanium can react & burn at temperatures in excess of 5000°C. Heavy Metal FE from CF contains a highly specialised extinguishing agent, SPM PYRO, is designed specifically to combat metal Fires at higher temperatures and is effective against fires involving heavy metals.

The range comes in 4Kg, 6Kg, and 9Kg variants in Mild Steel containers.

Features

  • Application: Fights class D fire.
  • Special agent: SPM-PYRO effectively fights heavy metal fires like Plutonium (Pl), Titanium (Ti), Lead (Pb), Zinc (Zn), Copper (Cu), etc. which produces heat up to 5000°C or above.
  • Chemically tested:  The extinguishing agent has been chemically treated to make it easy to spray through a nozzle, as well as make it water-repellent.
  • Specialised nozzle: Special Cascade Nozzle to aid effective agent dispersal over fire.
  • Container type:  Deep-drawn Mild Steel container.
  • Discharge mechanism:  A simple squeeze grip activation mechanism allows you to control the discharge and optimise use of the extinguishing agent.
  • 1-year warranty:  The 1-year warranty means Ceasefire is looking out for the health of your fire safety products.
  • Certification: BIS and PED certified.



Technical Specifications

GLOSSARY METAL FIRE EXT SPM PYRO-6KG MS SP RED
PRODUCT CODES CF-000041
AGENT SPM PYRO
STORED PRESSURE/CARTRIDGE  STORED PRESSURE
CERTIFICATION OR VERIFING BODY EUROCERT
CERTIFICATION TYPE PED, IS15683
BIS MARKING YES
CE MARKING/UK CA CE YES
GROSS WEIGHT 9.86 TO 10.09 KG
GROSS WEIGHT (WITH LESS THICKNESS) 9.40 TO 9.90 KG
NET MASS 5.88 TO 6.12 KG
DISCHARGE MECHANISM SQUEEZE GRIP
APPLICABLE ON FIRES D
CAN CONSTRUCTION DEEP DRAWN & MIG WELDED
VALVE / CAP CONSTRUCTION FORGING AND MACHINING
EXTERNAL COATING EPOXY POLYESTER POWDER
HELIUM LEAK DETECTION TESTING YES
WARRANTY IN YEARS 6
WORKING PRESSURE 15 BAR
HYDROSTATIC TEST PRESSURE 35 BAR
DIA. OF SHELL (OD) 160 MM
APPROX. HEIGHT OF FIRE EXT. 485 MM
BODY THICKNESS 1.6 MM
BODY THICKNESS (LESS THICKNESS) 1.4 MM
CYLINDER MATERIAL SPEC. STEEL CR2(DC01)
OPERATING TEMPERATURE -30°C TO +60°C
SCHRAEDER VALVE YES
PRESSURE RELIEF VALVE YES
