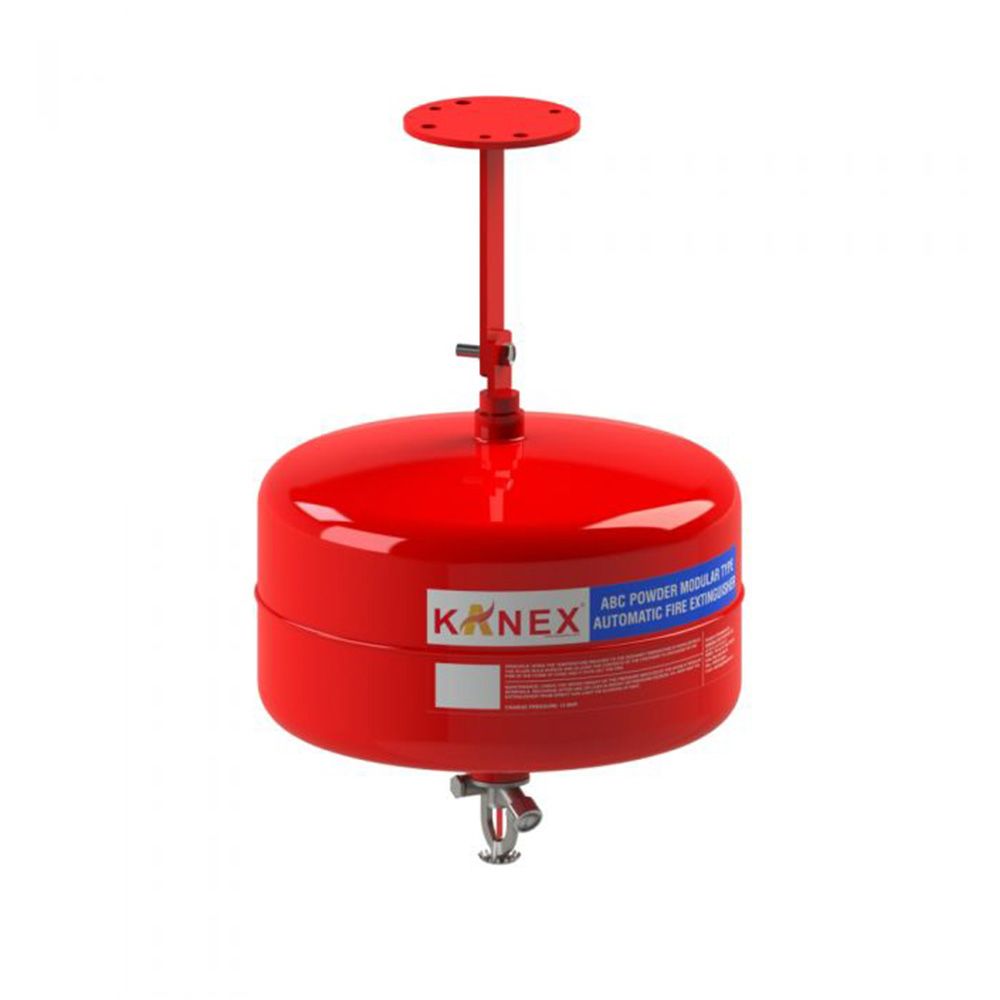

10 kg ABC Dry Powder Ceiling Mounted Modular Type -MAP 50% Fire Extinguishers

Code : KMPRQ-10-50%

Key Features

  •  High quality MAP 50% Powder.
  •  Unique gauge testing system (UGTS) mechanism.
  •  Brass chrome plated discharge sprinkler.
  •  Tough Exterior and interior Coating with Pure Polyester (PP) powder.
  •  Automatic Detection and Suppression in a single unit.
  •  Extinguisher shells are 100% factory hydro tested to excess of 35 bar.
  •  Expelling Agent UHP (Ultra High Pure) Grade Nitrogen.
  •  Anti-corrosive Phosphate treated modules.
  •  Provides securities in case of emergencies and power failure without power backup
  •  Easy as well more economical to maintain, service and re chargeable.
  •  Bar Code labeling for better traceability.



Specifications:

MODEL KMPRQ-10-50%
Capacity 10 kg
Height (Approx.) 405 mm
Average Discharge Time 10-15 Sec.
Operating Temperature -30 °C to +55 °C
Expelling Agent Nitrogen (UHP Grade)
Empty Weight (Approx.) 4.16 kg
Mounting Bracket Ceiling mounting stand
Volume Protection 10 m3
Hanging Height Above Risk 2 m
Design Ceiling Mounted
Diameter (Approx.) 300±10 mm
Average Discharge 0.99
Service/Max. service/Test Pressure 15 / 35 bar
Full Weight (Approx.) 14.1 kg
Shipping Weight (Approx.) 14.5 kg
Approvals Any Government approved Lab
Area Protection 4-5 m 2
