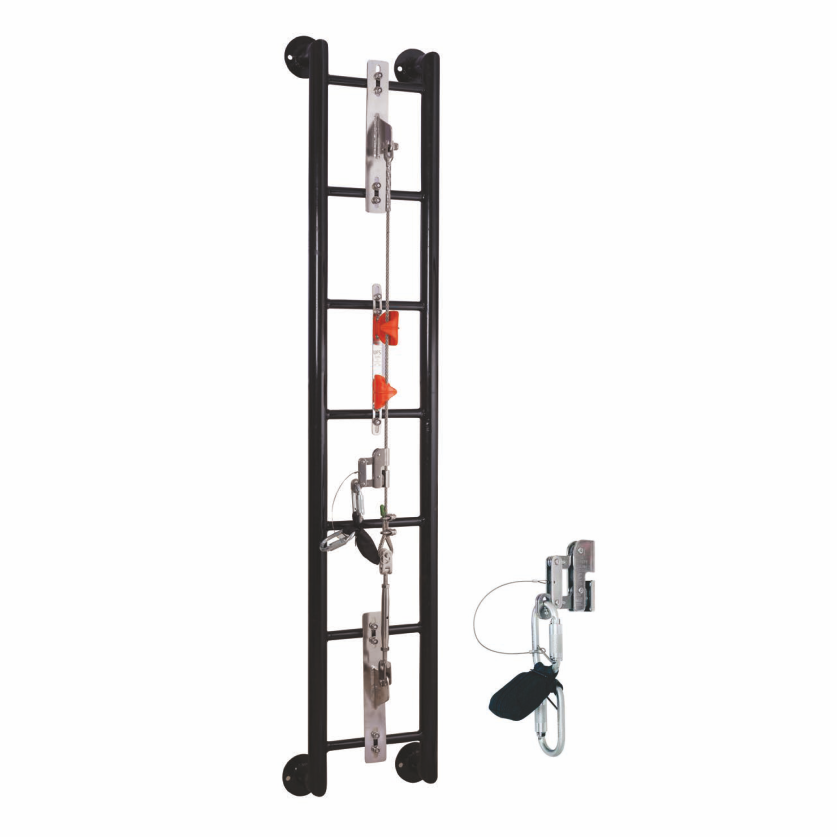

Vertical Lifeline System

Vertical life line system is an integrated solution to assist the fall of a user who has to constantly move up and down a ladder. It consists of a vertical anchorage line made of stainless steel wire rope, installed on a ladder using an appropriate mounting bracket at the top to two ladder rungs.
A stainless steel rope grab moves up & down and connected to this rope grab with the help of a karabiner. A screw type mechanical tensioner is provided at the end of the anchorage line at the bottom, connecting to the lower mounting bracket to maintain the tension& rigidity in the anchorage line.
Intermediates are provided at intervals to prevent the anchorage line from mechanical movement and wind pressure.
One stainless steel plate is used to fasten the system structure at the time of installation, the relevant detail and revalidation details are provided on the plate by a number punched. The system also has an inspection plate which is installed on rung of the ladder for the identification, traceability and maintenance of inspection records.
It is easy and simple to install the system with minimum effort for installation. Connection of the wire rope at the 2 ends to the extremity a tensioner, making the installation simple, easy and avoid use of specialized machinery.

Product Specification
System is made of SS 316 Grade Stainless Steel.
Brackets are designed for ladder rungs but can be easily
      adapted to most structures.

Note : System must be used only with VL-50 Rope Grab
Length : From 3mt to desired length
Conform to : EN 353-1:2014

System Components
VL-40A Top Anchorage Bracket
VL-40B Bottom Anchorage Bracket
VL-65 Turnbuckle
VL-60 Rope Guide
VL-60C Rope Guide
VL-30 Wire Rope

VL-50 Wire Rope Grab With Shock Absorber
Made of 316 Stainless Steel.
It is secured with a USP-H7 carabiner.
Use of non-authorized carabiner can cause fatal accidents.
The user is free to climb and descend with full use of the hands.
Conform to : EN 353-1:2014
