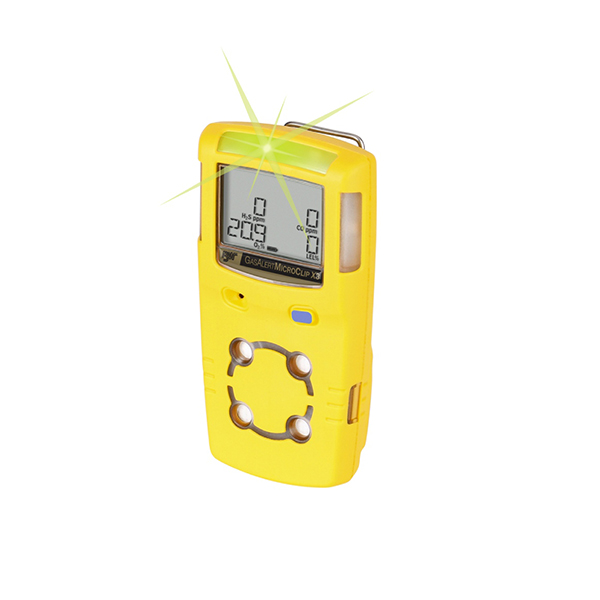

Multi Gas Detector H2S, CO, O2, LEL Censors

Code : Honeywell Gas Alert MicroClip X3 MCX3-XWHM-Y-EU

Product Description:

Use our unique advanced technology for safety, compliance and productivity.

  • Advanced engineering for reliable battery performance
  • Reflex Technology™ automated self-test function routinely checks the operating condition of the sensors to increase safety, up-time, and overall worker confidence
  • Compact, lightweight and easy to use - no expertise required
  • Flashing green IntelliFlash™ light for compliance at a glance

GasAlertMicroClip Standard Features:

  • Guaranteed runtime for at least a 12-hour shift - down to -20°C - without compromising LEL detection of hydrogen, acetylene and other combustible gases
  • Durable, rechargeable lithium polymer battery - tested to last in extreme environments
  • Ergonomic and wearable - doesn't weigh you down
  • Real-time gas concentrations shown on LCD
  • Bright, wide-angle visual alarm bars
  • IP68 rating ensures maximum protection against dust and water
  • User-friendly, tamper-proof operation with just one button and intuitive LCD icons
  • IntelliFlash™ light indicating detector has been bump tested and is monitoring correctly
  • Self-test of sensors, battery status, circuit integrity and audible/visual alarms on startup
  • Compatible with MicroDock II docking station for automated bump tests and calibration
  • Compatible with Fleet Manager II software for reporting and fleet management
  • Multi-language support in English, French, German, Spanish and Portuguese

New to GasAlertMicroClip X3:

  • Five-year life expectancy - plus a three-year warranty
  • An all-new oxygen sensor that operates consistently for five years - with no replacement costs for the life of the detector
  • Superior cost of ownership - with minimized maintenance and maximized uptime

Specifications:

Size 4.4 x 2.4 x 1.2 in. / 11.3 x 6.0 x 3.2 cm
Weight GasAlertMicroClip X3: 6.3 oz. / 179 g
Temperature -4 to +122°F / -20 to +50°C
Humidity 0% - 95% RH (non-condensing)
Alarms Visual, vibrating, audible (95 dB)
  Low, High, STEL, OL (over limit)
Tests Audible/visual alarms on activation; sensors, battery and circuitry (continuous)
Typical battery life 18 hours; recharges in less than 6 hours
User options Confidence beep
  Set STEL interval
  Sensor on/off
  Latching alarms
  Safe display mode
  Stealth mode
  Calibration lock
  Auto zero on start up
  O2 auto calibration on start up
  Set bump test interval
  Force bump test when overdue
  IntelliFlash™ interval
  Combustible gas measurement (%LEL or % by volume methane)
  User-settable calibration gas level
  Force calibration when overdue
  Low alarm acknowledge
  Language choices
  Set custom start up message
Ratings IP68
  EMI/RFI: Complies with EMC Directive 2004/108/EC
Warranty Full two-year (GasAlertMicroClip XL) or three-year (GasAlertMicroClip X3) warranty including all sensors

Sensor Specifications:

Gas
Measuring Range
Resolution
H2S
0-100 ppm
1 ppm
CO
0-500 ppm
1 ppm
O2
0-30.0%
0.10%
Combustible gases
0-100% LEL
1%
  0-5.0% v/v 0.10%
