Equipment description

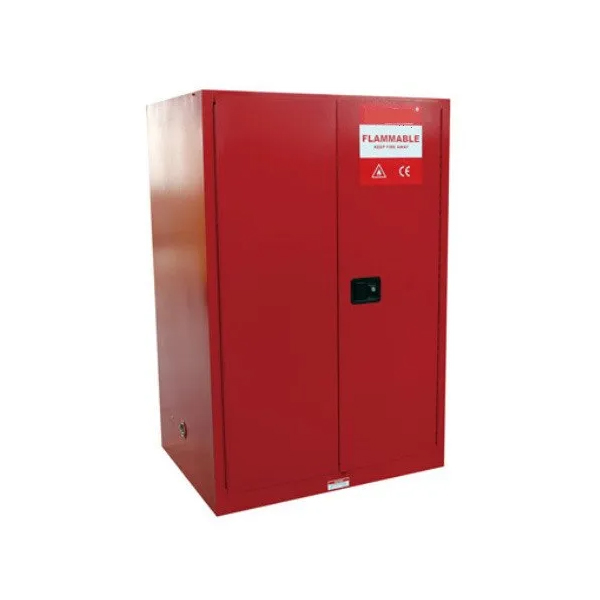

1. Equipment type flam storage cabinet ,
2. Capacity available 30 gallan ,
3. Function storage of acid for laboratory chemicals

Design codes & standards

1. Standards followed fm approved, NFPA code 30chapter 9.5.3(1) & 9.5.3(2) us osha 29 cfr 1910.106 ( kewaunee cabinet 10 minits fire rating) ducting pp/frp
2. Plates for cabinets 1.2mm thick, crca, epoxy powder coated
3. Plates for shelves 1.6mm thick,gi 180 gsm
4. 10 powder coating pure epoxy - durable (blue), chemical & acid resistance with thickness 60 - 80 microns

Data standards

1. No of shelves standard : 2, additional as per client requirement
2. Doors self indexing with locks & fusible link, optional : self / manual / bifold close
3. Latches 3 point self latching type, moc : powder coated (crca)
4. Handle colour : black , moc : crca, pad lockable, slip resistance grip
5. Shelf stand welded & interlock with shelf
6. Cabinet wall double wall steel with 38mm insulated air space
7. Joints spot welded & mic welded joints
8. Hinges continuous piano hinges
9. Earthing built in outside
10. Sump polypan tray of thickness 3.5mm
11. Vents dual with flash arrestor to each cabinet, diagonally opposite at each end

Dimensional datas

1. Dimensions (inches) (height x depth x length)
2. 30 gallon, 44'' x 18'' x43''

Ventilation requirements

1. Fusible links melting temperature - 80*c (353 f) only self close door
